FUNCTIONAL SPECIFICATIONS
Flow rate approx. 0.9 + 900 l/min *
Pressure Up to 200 bar continuous, up to 400 bar continuous
Amb. Temperature Min/Max -15°C to +100°C (up to 150°C on request) *
Type of fluid Lubricating oils and chemically neutral mixtures, also with low lubricating properties. *
Recommended Filtration Rating NAS 10 - 12 *
Precision Class 0.2% (0.4% within the range 30+1) *
Precision Class 0.2% (0.4% within the range 30+1) *
Standard Materials Steel Body / Flange, Nitrided Screws *
O/P type Square wave signals in sequence,
based directly on flow rate *
(*) For different values contact SEIM

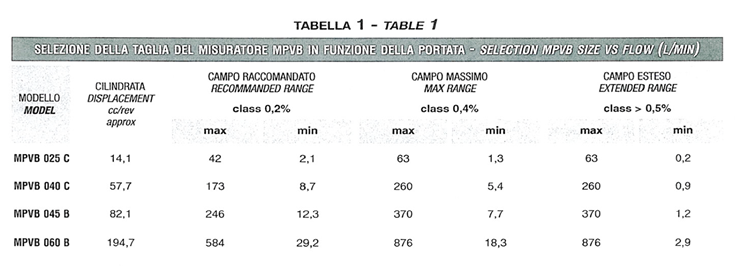

  • Table 1
